Environmental Protection Case Introduction

1. Project overview

1.1 Project goals

Remotely monitor the operation status of integrated sewage treatment equipment in various regions of the country, and realize remote operation and maintenance management of all equipment types. As the equipment is scattered throughout the country, belongs to different water companies, and the number of equipment is increasing, adding equipment and data to the existing system has great limitations, and system maintenance and new functions are inconvenient. The added process flow of the existing system is not configurable and requires high programming for maintenance personnel. Therefore, in order to improve the management level and efficiency of integrated sewage treatment equipment, a configurable development webpage and APP platform software development is needed to realize all the functions of the existing system. Therefore, it is necessary to establish a set of integrated sewage treatment equipment centralized monitoring system with unobstructed information and reliable operation to monitor the operation information of integrated sewage treatment equipment under its jurisdiction and the operation status of statistical analysis equipment in real time, and help the water department to make efficient, fast and accurate To realize unattended integrated sewage treatment equipment, unified dispatch and command, improve management efficiency, save operating costs, and ensure efficient, safe and stable operation of the entire equipment. The main implementation content of the integrated sewage treatment equipment centralized monitoring project includes geographic information function, operation monitoring of each integrated equipment, remote control, list display, trend curve, video monitoring, system alarm, report analysis, operation log, production management, authority management And functions such as mobile APP and system security.

Informatization of asset management Establish a unified basic information database to realize the information management of sites, assets, operation and maintenance personnel and other information in one station, realize the full life cycle management of site assets, and improve the effective management of site resources.

Visualization of operating conditions

Establish a visualized remote centralized monitoring platform to realize remote centralized monitoring and intelligent alarming of the site's import and export water quality, operating conditions (fans and pumps operating status, water level, flow), video images, and other data, and improve the efficiency of handling abnormal emergencies. Site sewage treatment rate and effluent compliance rate.

Operation and maintenance supervision standardization

Establish a scientific operation and maintenance management system, realize scientific supervision of operation and maintenance work from daily operation and maintenance work specifications, processes, and systems, and realize closed-loop management of operation and maintenance events, thereby improving the quality and efficiency of operation and maintenance work.

Digital quality assessment

Establish a multi-dimensional digital quality assessment system to provide efficient digital assessment methods for the assessment and evaluation of the quality of domestic sewage treatment in villages and towns.

1.2 Project scope

1. Project functional scope
Serial number Functional Requirements
1 Enterprise big screen homepage
2 Equipment process flow chart
3 Video Surveillance
4 Report function
5 Trend data
6 Alarm management
7 Operation log
8 Operation log
9 authority management
10 SMS alarm
11 Equipment maintenance work order management
12 Gradual alarm function
13 Alarm problem
14 Equipment operation and maintenance reminder
15 Overall frame structure
2. Combining the needs and characteristics of Haoyuan and their owners to delineate the scope of business boundaries, including:

a) KS end

Front-end data access alarm

b) WEB end

Business presentation

Equipment and facility working condition monitoring (real-time data, video)

Statistical analysis of data

Alarm and early warning push

Equipment maintenance

c) Mobile APP

Data monitoring

Statistics report

Maintenance work order

d) Docking with video surveillance system

e) Docking with SMS platform

2. Project overall framework

2.1 System architecture diagram
  • Deploy integrated sewage treatment equipment at the integrated site, with electrical equipment such as water pumps and blowers, water quality and water volume monitoring instruments and video camera equipment on site;
  • The integrated equipment is produced and deployed in Haoyuan, equipped with a complete set of PLC and touch screen. In addition, Friends, Fanyi and a local data acquisition gateway box in Chongqing are deployed on site for networking;
  • The video camera is Haikang, and the system platform provides video streaming services through Haikang's fluorite cloud.
  • A cloud server is deployed in the center, and KingSCADA, KingIOServer, King Historian, MySQL, and King Portal software are deployed on the server for real-time data collection, monitoring, data storage and business application construction.

3. Functional modules and user interface

3.1 Data collection and storage

The data collector collects the data of the underlying equipment and saves it to the database of the cloud server deployed by Haoyuan Environmental Protection. The real-time industrial database saves and processes continuous industrial process data with time stamps, and the relational database (MYSQL, mongodb) saves and processes entity Business data with relational structure.

3.1.1 Core data collection program

The data collection function should be able to realize the data collection in the production and operation process, and the collected data content includes: automatic control real-time data, manual data entry.

  • Production automatic control real-time data collection: Deploy a front-end data collection gateway in the integrated equipment and sewage plant, and use IOServer to collect the PLC, electricity meters and other instruments and equipment on the water plant and integrated pumping station through the network to directly communicate for data collection and integration. Save the data to the real-time database of the cloud server through the internal interface, and then use the network to realize the on-site real-time data center access to query the real-time data of the display factory.
  • Manual manual data entry: including production plan data, laboratory test data, safety production data, production cost data such as communication and transportation, inspection equipment maintenance data, etc.; deploy remote sewage operation in the office of the owner of the park and the owner or the mobile terminal The client of the monitoring platform, the staff of various functional departments realize the input of various business data, production data, etc. through the BS client web page, upload them to the corresponding planning database, real-time database and historical database, and then directly save them to the corresponding database of the cloud server in.
3.1.2 Real-time data collection scheme

The IOServer acquisition software platform, as an independent data acquisition platform, realizes the data acquisition of more than 4000 kinds of equipment; supports multiple databases and multiple storage methods, and provides standardized and unified data for third-party software or data acquisition monitoring platforms source.

The IOServer acquisition platform used in this solution realizes the on-site sensing and execution of data uploading and acquisition from the secondary on-site pre-data acquisition gateway to the PLC and intelligent instrumentation. Real-time data is divided from its source, divided into equipment-generated and calculated. The real-time data generated by the equipment is mainly collected by the IOServer. The calculation results generally refer to the calculation results generated by the SCADAServer, and no additional collection is required.

In this project group, IOServer directly collects equipment process data and production working condition data from the secondary platform data collection gateway. The calculated data is calculated and stored by KingSCADA and King Portal and databases deployed on the cloud server.

3.1.3 Historical data storage

According to the current product description requirements for data storage, the Historian of the system needs to store a variety of data (real-time data, alarm events, annotations), needs to support the storage requirements of structured data (structured based on time series), and at the same time, in order to improve the query Efficiency, added feature value data (mainly for query of trend curves) and query cache.

Serial number Category One Category Two
1 PC side log in
GIS map
Process monitoring
Comprehensive report
Trend curve
History alarm
Equipment management
User Management
Work order management
2 mobile client map
Work order
3.3 User interface list
Serial number Category One Category Two Functional Overview
1 log in User login User login permission recognition
2 Cockpit   KPI data summary display
3 GIS map   Site distribution and core data display
4 Process monitoring Equipment overview Process flow and data monitoring
    Real-time alarm Site real-time alarm data browsing
    Equipment report Site equipment operating condition report
    trend analysis Site core indicator trend query browsing
    Video Surveillance Site video surveillance
    remote control Device remote control
5 Comprehensive report Production report query browsing and expo
6 Trend curve Index trend query and comparison
7 History alarm Alarm history information query
8 Equipment management Query, modify, add, delete, maintenance reminder, initiate work order Add, delete, modify and check equipment ledger, work order is initiated
9 User Management User Management User and authority configuration management
    Role management User role configuration and management
10 Work order management Enquiry and work order processing Work order processing and query
11 mobile client map Site distribution and core data display
    data Equipment overview, equipment report, comprehensive report, historical alarm and trend query
    Work order Work order processing
    mine User information management

3.4 Introduction to PC

3.4.1 Login interface:
3.4.2 GIS map

Business process description: The geographic distribution GIS page of the project can display the geographic location of the plant and the number of equipment and facilities within the organizational framework according to the user organization (authorization).

Function interface:

Function Description:

  • Statistics on the number of equipment settings and online status, showing the number of equipment and facilities in the organization structure of the logged-in user, and the number of online and offline equipment and facilities;
  • The distribution of equipment and facilities (by province and region) shows the number of equipment and facilities, and displays the alarm (color identification) of abnormal equipment setting sites that exceed standard;
  • Site positioning and switching can be performed by drop-down selection of province selection (if there is in the authority), region (if there is in the authority), site, etc.
  • Alarm information display, scrolling display of the latest site alarm information;
3.4.3 Cockpit page

Business process description: The summary information display of all sites within the login user authority is mainly divided into water volume, water quality, equipment, alarms, and project geographic location display.

Function interface:

Function Description:

  • Display of water quality compliance rate and water production compliance rate;
  • Statistics of equipment and facilities compliance rate and operating energy consumption;
  • Statistics of equipment alarm types;.
  • Rolling display of production alarm information (TOP20);
  • Site distribution and number display (Echars map chart);
  • Real-time water production trend of sites within the authority;
  • Real-time water output statistics;
  • Water quality benchmarking (level A) chart display;
  • Comparison of cumulative (monthly) water output in various regions;
  • The proportion of equipment status;

3.4.4 Process monitoring Device overview

Business process description: Through the site equipment overview, you can view the current site process flow chart and equipment working condition status, and you can remotely control the site equipment;

Function interface:

Function Description:

1. Basic site information display, site name, deployment time, site scale information;

2. Equipment working condition and status display; Real-time alarm

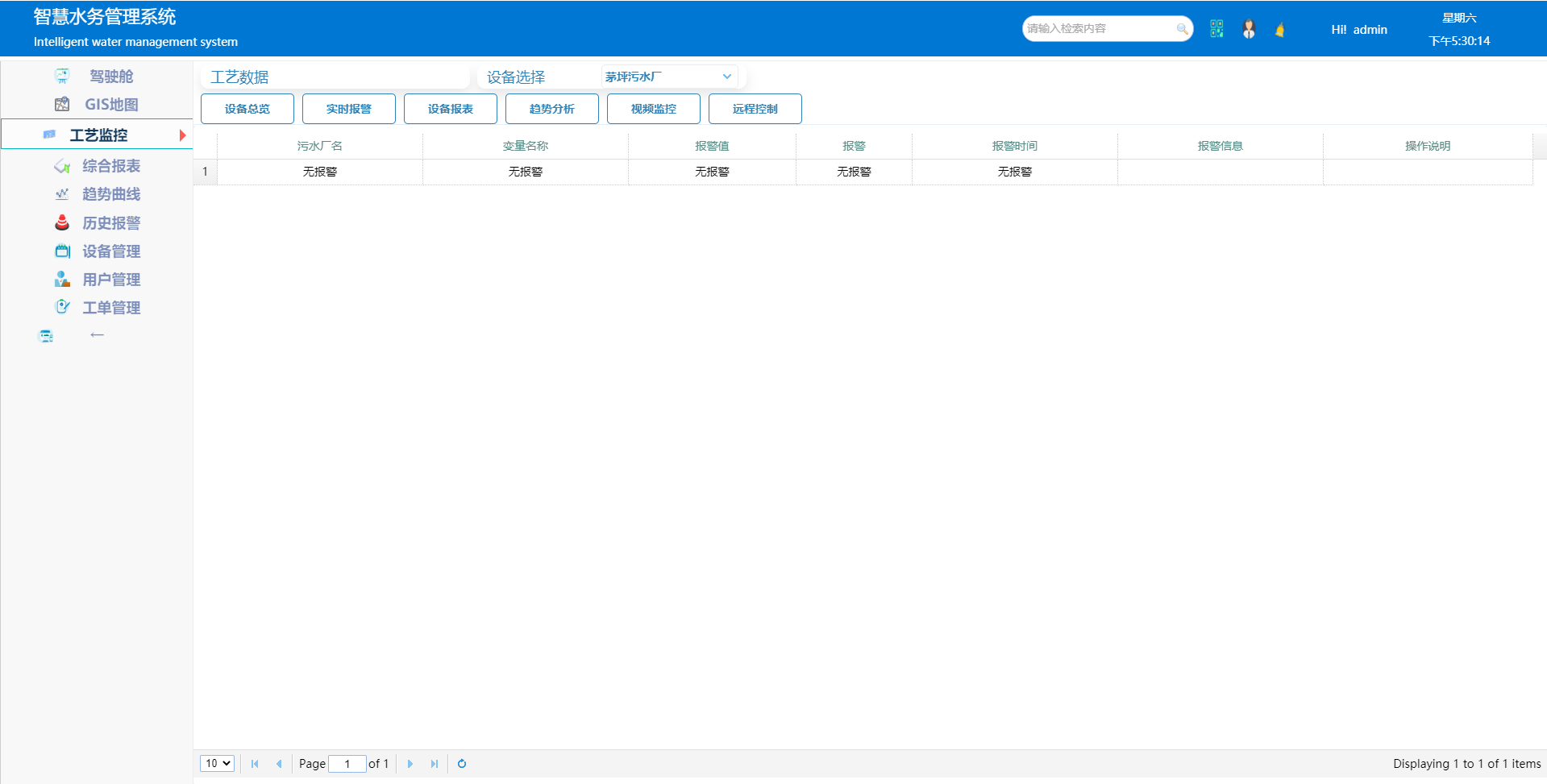

Business process description: View real-time alarm information of the current site;

Function interface:

Function Description:

View the real-time alarm information generated by the current site; Equipment report

Business process description: You can view the electrical parameters, operating parameters, and effluent flow information of the core equipment within each hour of the current site.

Function interface:

Function Description:

View the electrical parameters, operating parameters, and effluent flow information of core equipment within each hour of the current site.View the real-time alarm information generated by the current site; Trend analysis

Business process description: You can view the equipment parameters in the current site (blower current, 1# inlet pump current, production water pump current, return pump current, wind pressure, membrane pressure, mixer current, 2# inlet pump current, outlet homeopathic flow, total outlet water Flow) trend curve over a period of time.

Function interface:

Function Description:

1. Pull down to select device parameters;

2. Select the start time and end time of the query;

3. Click query to display the current parameters and the trend curve within the selected time;

4. You can drag the time control under the curve to zoom; Video surveillance

Business process description: View the video surveillance screen in the site;

Function interface:

Function Description:

Real-time video preview and video history playback functions are realized through the API interface provided by video manufacturers;

1. Real-time video preview, open the video monitoring page through the process monitoring item; open the video preview interface when the video is online, display the video screen of the camera in the latest period of time; when the video is offline, prompt the device to be offline;

2. Video playback, select the camera ID, and then determine the start date and time of the video playback Remote control

Business process description: Village and town integrated sewage treatment equipment is located in remote areas, mostly unmanned pump stations. When an alarm occurs or a fault occurs, the operation and maintenance personnel can realize the start and stop control of the equipment through the operation and maintenance management platform, and can view the current Plant station operating mode, equipment operating conditions.

Function interface:

Function Description:

1. Click to switch modes;

2. The equipment can be controlled (within the scope of authority);

3. Run time setting;

3.4.5 Comprehensive report

Business process description: system users view the site statistics (day, month, year) report page.

Function interface:

Function Description:

1. Selection of report type (daily report, monthly report, annual report)

2. Query date and time selection;

3. Click query to query the operating conditions, cost consumption and effluent quality of each plant within the scope of the login user's authority;

4. Click Export to export the query results to the local;

3.4.6 Trend Curve

Business process description: view minute data and hour data, time filter can be set, and trend graph can be printed out. Each user can only view the corresponding trend data under the corresponding user authority.

Function interface:

Function Description:

1. Click the device selection, and select the site name through the drop-down box (the site is within the scope of the login user's authority);

2. Click on the equipment parameters and select the equipment parameters (equipment operating conditions parameters) through the drop-down box;

3. Select the start and end time of the query and select the query time range;

4. Click the Add button to add the working condition parameters of the selected station to the curve screen, up to four curves can be added by technology;

5. You can zoom through the time axis under the curve window;

6. Click the clear button to clear all curves in the current curve page;

3.4.7 Historical alarm

Business process description: realize the alarm list of equipment alarm parameters and process equipment parameters, export the fault list, and filter the fault information by time for accident tracking.

Function interface:

Function Description:

1. Click the location selection, you can select the factory station within the scope of the login user's authority to query;

2. Select the alarm type: all, high, low, high high, low low;

3. Select the start and end time of the query;

4. Click Query to find out the alarm information of the current site and the selected alarm type within this period of time;

5. Click Print to print out the result of the inquired alarm information

3.4.8 Device Management

Business process description: View and create work order logs, maintenance plans at any time, and track the progress of work orders. According to the user's running time setting, the current running time and the equipment running time setting, make corresponding judgments and prompt relevant maintenance reminders.

Function interface:

Function Description:

1. Selection of equipment ledger, equipment to be maintained, maintenance information, and maintenance records;

2. Click the query button to query the corresponding equipment account information;

3. Select a result and click Modify to modify the ledger information;

4. Click the Add button to add a piece of equipment account information;

5. Click to delete the selected device account information;

6. Click the maintenance reminder to pop up the equipment maintenance reminder edit page;

7. Click to initiate a ticket to pop up the create ticket information editing page, and you can edit the ticket information.

3.4.9 User Management

Business process description:Use the administrator account to add, delete, modify, and view functions for monitoring areas, department management, user management, role management, and enterprise information management.

Function interface:

Function Description:

1. Divided into user management and role management;

2. Click the New User button to pop up the new user interface; you can add a user name, set a password, fill in the basic information of the phone number, and perform role authority management configuration;

3. Select a user and click Edit to modify and edit user information and configure permissions and roles;

Click the delete button to delete the user;

4. Click the new role of role management, and the role creation page pops up; through role name, remarks, permission area selection, company information selection, permission site selection, and page permission selection configuration, click New to complete the role creation;

5. Select a role and click Edit to configure role information and permissions;

6. Click Delete to delete the role;

3.4.10 Work Order Management

Business process description: View and create work order logs, maintenance plans at any time, and track the progress of work orders.

Function interface:

Function Description:

1. Work order type selection, work order account, unfinished work order, completed work order selection;

2. Click Query to query the work order information;

3. Select an unprocessed work order, and then click the work order processing button to pop up the work order processing information interface, fill in the work order processing information, and then save it into the system platform;

4. Select a piece of work order information and click the delete button to delete the work order information.

3.5 APP introduction

The function of the APP is equivalent to a simplified version of the PC terminal, so no detailed description is given here. The function is the same as using the Betta fish PC terminal.

3.5.1 Login interface

The login interface of APP is similar to that of PC.

3.5.2 GIS map
3.5.3 Data

As shown in the figure above, the data interface mainly includes six modules. Device overview Historical alarm

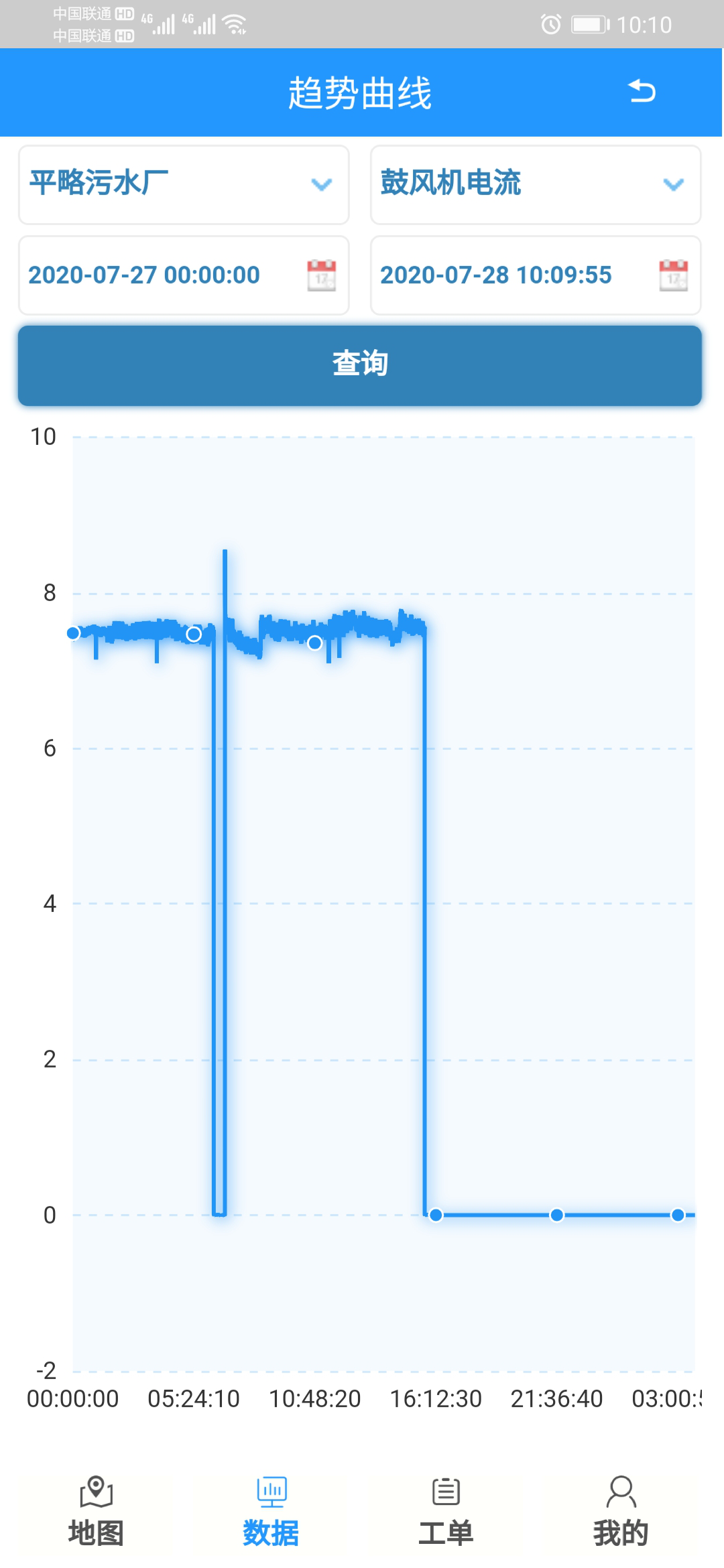

The login interface of APP is similar to that of PC. Trend Curve Equipment report Remote control Comprehensive report
3.5.4 Work Order

4. Customer benefits

  • Centralize all sewage plants and sewage treatment equipment across the country on one platform for management, which greatly reduces the workload and management difficulty of personnel.
  • After the unified management of all equipment, it can improve the efficiency of equipment use, discover the hidden dangers of the equipment in advance, and also facilitate the traceability and analysis of the cause of the accident after a problem occurs.
  • Help customers, operation and maintenance units, and owners to build a full-process and fully transparent monitoring system, and an efficient and coordinated operation and maintenance service and after-sales service system, providing a powerful technical guarantee for more refined service management. Compared with traditional service management methods, service quality and efficiency have been comprehensively improved.
  • Improved the company's scientific decision-making capabilities, accumulated a large amount of data, strengthened data analysis, quantitative analysis, assisted management decision-making, changed decision-making methods, and improved the level of corporate management.
  • Reduce the cost of production, operation, maintenance, management, etc., which greatly improves efficiency and quality for enterprises.
