Informationization Case

1. Project background:

Goldwind's environmentally friendly smart water platform consists of 6 sections including water data statistics BI, health monitoring, asset life cycle, operation management, mobile applications, and background services, including 13 sub-functions and more than 100 applications. Use emerging technologies such as the Internet of Things, mobile Internet, big data, cloud computing, and artificial intelligence to realize intelligent identification, positioning, monitoring, calculation, management, simulation, prediction and optimization of water plant information, thereby reducing energy consumption and operating costs, and establishing Standardized and standardized operation and management system to realize water affairs information sharing and intelligent analysis and decision-making.

2. Enterprise status:

Goldwind Environmental Protection Co., Ltd. is a wholly-owned subsidiary of Xinjiang Goldwind Technology Co., Ltd. (stock code: A shares 002202; H shares 2208). It was established in August 2015 with a registered capital of 1 billion yuan. Specializing in the investment, design, construction, operation and management of water projects, as well as the development, sales and maintenance of related equipment and materials, the business covers tap water, sewage, sludge, ecological environment management and other fields. Up to now, Goldwind Environmental Protection holds 52 water projects, with water assets exceeding 3 million tons per day.

Up to now, Goldwind holds 52 water assets, with a total scale of more than 3 million tons per day. There are also many projects such as sludge treatment, garbage treatment, and toilet renovation.

3. Problems faced by enterprises:

Through the preliminary demand communication of Goldwind’s operating management platform and the investigation of the current system status, the group’s business personnel, management personnel, branch general managers, total, water plant directors, laboratory technicians, financial personnel and operating personnel report daily data (including Production and operation data, financial data, laboratory data and assessment data) management relies on traditional excel electronic documents for filling and uploading. There is no unified data standard for data acquisition and data sharing and integration, and there is no standard data collection mechanism. The summarization and extraction of data relies on a large amount of manual labor, and the timeliness and accuracy of data collection has a large lag and drawbacks.

"Operation management" demand analysis:

Customized display of the page content most concerned by each unit. Including the visual display and report query of basic information, production and operation data, financial revenue and expenditure data, performance appraisal rankings, etc. of the group, branch, and water plant.

Supervise the import/filling process and records of data tables, and realize the perspective, summary, calculation and analysis of multi-table data. Including production and operation data, laboratory data, revenue and expenditure system query summary and analysis; KPI performance digital statistics, comparative analysis, etc.

Data entry is realized on PC and mobile terminal, including water plant production and operation data filling; laboratory data filling; income and expenditure data filling; performance index data filling.

Custom correction of scoring coefficient;

Automatic data collection, online modification of reports, query of production process parameters, and dosage.

4. Project construction plan:

5. Project construction content:

Obtain online production and operation data, financial data, laboratory data, and assessment management data of the major business divisions, areas, and sewage plants of the group, unify data standards (data acquisition, data sharing and integration), standardize data collection and exchange mechanisms, and improve information systems. Realize the systematic management of operations management, laboratory management, financial management, assessment management and other businesses of business departments and water plants in various regions, and strongly support and drive the modernization, informatization, and integration of management and control of the water group.

1. System login

Realize the user login function, and determine the functional modules and data access scopes accessed by the user according to the user authority. According to the user's authority, the corresponding interface display (selection range, button authority).

2. System cockpit

Each time the financial data is reported, it will be accurately displayed on the histogram and pie chart through complex calculations. The yellow histogram shows the current month's financial income and the blue histogram shows the cumulative financial income. The pie chart on the right Display the cumulative proportion of each branch.

The small green bell in this interface is the alarm system. When the small bell flashes red, clicking on the small bell will pop up the name of the water supply exceeding the standard, the effluent exceeding the standard and the hidden water plant.

Branch financial data: every time the financial data is reported, the financial status of the regional branch will be accurately displayed on the histogram and pie chart through complex calculations. The yellow histogram shows the financial income of the current month and the blue The histogram shows the cumulative financial income, and the pie chart on the right shows the cumulative proportion of each water plant.

Water plant financial data: every time the financial data is reported, the financial status of the water plant will be accurately displayed on the bar chart and pie chart through complex calculations. The yellow bar chart shows the current month’s financial income and the blue one. The histogram shows the accumulated financial income, and the pie chart on the right shows the proportion of the cost of the water plant.

3. Production operation management

a) Daily data display 1

The four meters displayed on the page represent the display of the latest data currently reported, and the line chart shows the data display from the first day of the month to the last date of the current month, and the average value represents this period of time The average value of this value within.

The drop-down box in this interface can select all branches as shown in the figure below. Whenever a branch is selected, the project company, that is, the water plant, in the drop-down box will also change with the branch.

b) Daily data display 2

The four meters displayed on the current page represent the display of the latest data currently reported, while the line chart shows the data display from the first day of the month to the last date of the current month. The average value represents this period. The average value of this value over time.

The drop-down box in this interface can select all branches as shown in the figure below. Whenever a branch is selected, the project company, that is, the water plant, in the drop-down box will also change with the branch.

c) Daily data display 2

The data displayed on the current page is the data reported in the current daily operation. Whenever the operation manager fills in, the page will display the filled data and save the filled data, and display the date of filling.

Query: Select the branch you want to query in the branch drop-down box at the front, select all or a project company in the project company drop-down box, and then select the time period you want to view in the query date drop-down box at the back, and then Clicking on the query button will display the desired screen export:

Delete: When you need to delete a row on the page, just click on the small square in front of the row, and a check mark will appear in the small square. At this time, just click the delete button to delete this row;

Print: print out the query result directly;

Export: You can export the query results to a local Excel file for offline circulation and output;

d) Daily data display 2

Click the basic data in the menu bar, the page is displayed as basic data, and the page is as shown in the figure below. This page mainly displays the project company, the temporary residence of the branch company, the full abbreviation of the project company, the construction scale, the sewage treatment process, the effluent standard and the treatment type corresponding to each branch.

e) Operate real-time scoring

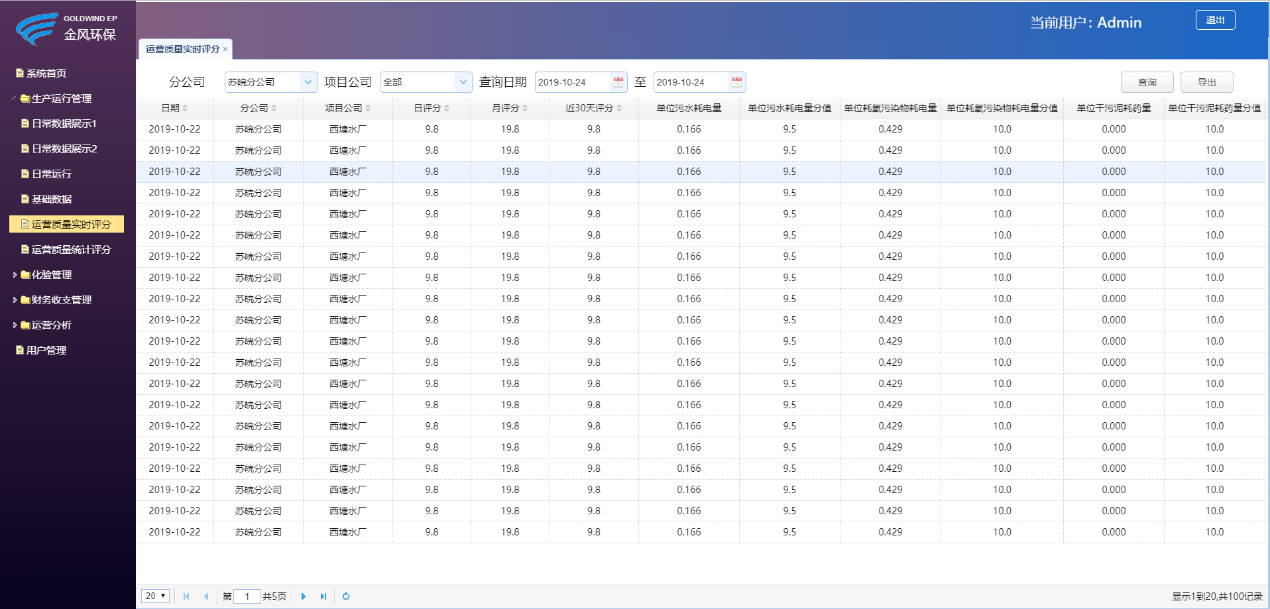

Click the real-time score of operation quality in the menu bar, the page will be displayed as the real-time score of operation quality page, as shown in the figure below. The main display is the real-time score of the operation quality of each project. It will be displayed on this screen whenever the correct report is completed. The operations designed on this page mainly include query and export.

f) Operational statistics score

Click the operation quality statistics score in the menu bar, the page will be displayed as the operation quality statistics score page, as shown in the figure below. Note: This page mainly displays the statistical scores of the operation quality of each project. It will be displayed on this screen whenever the correct report is completed. The operations designed on this page mainly include query and export.

Query: Select the branch you want to query in the branch drop-down box, select all or a project company in the project company drop-down box, and then select the time period you want to view in the query date drop-down box, and then click The query button will display the operational quality statistical score to be queried, as shown in the figure below.

4. Laboratory management

a) Laboratory data management

The data displayed on the current page is the current laboratory data. Whenever the laboratory management staff fills in, the page will display the filled data and save the filled data, and display the date of filling.

The operations involved in this interface are: query, export, delete, and print. These operations will be described in detail below.

Query: Select the branch you want to query in the branch drop-down box, select all or a project company in the project company drop-down box, and then select the time period you want to view in the query date drop-down box, and then click The search button will display the screen to be searched, as shown in the figure below. At this time, the query is for the Jiangsu-Anhui branch, and the data reported for all water plants from 2019-09-3 to 2019-10-24.

b) Laboratory data management

The line chart and histogram are displayed. The line chart mainly shows the real-time curve of the test parameters, while the histogram shows the comparison of water quality parameters. After the test manager fills in the report, the page will display the real-time test data and the water quality comparison data. The main operation of this page is query.p>

Query: Select the branch you want to query in the front branch drop-down box, a project company in the project company drop-down box, and then select the category you want to query in the sub-item drop-down box at the back, and then select the query Cycle, and then click the query button will display the screen you want to query, as shown in the figure below. At this time, the query is the monthly statistics of the total outlet water quality of the Su-Anhui branch and Shuyang Water Plant.

5. Financial income and expenditure management

a) Basic report

The main realization is the query and import function of financial finger data.

Query: Select the branch you want to query in the branch drop-down box at the front, select a project company in the project company drop-down box, and then select the report category that needs to be queried in the report name drop-down box at the back, and then click Query The button will display the screen you want to query, as shown in the figure below. At this time, the query is for the Jiangsu-Anhui branch, and the page showing the summary of water recovery rates of all water plants is displayed.

b) Summary analysis

Query: Select the report type you want to query in the report type drop-down box, select the report you want to query in the summary table name drop-down box and click the query button to display the query page on the page, then click The search button will display the screen to be searched, as shown in the figure below. At this time, the query is the page display of the water plant summary of the preliminary analysis summary.

Whenever filling in or importing an Excel table in the basic report, a row will be added to the summary table page, and there will be preview and delete in this row. When you click the preview, the exported table will be displayed as shown in the figure below ( This picture shows the preliminary analysis report-branch summary).

Click the delete button and an operation prompt will pop up. If you are sure you want to delete this table, click OK to delete the table, otherwise click the cancel button.

6. Operational analysis

KPI performance: water plant performance query, you can query the performance score sheet of each district and each water plant. Support the display and comparison of various performance indicators through data reports and column charts.

Water plants can only see the rankings in the branch area, but not the detailed performance KPI data. The branch companies can see the performance KPIs and detailed KPI indicator data of the water plants under their jurisdiction; the group can see the performance KPIs of each plant Index value and ranking;

a) Scoring system

The project company uses monthly water fee income, water fee recovery and operating costs as performance evaluation indicators.

It is mainly composed of operation quality and average ranking of branch projects.

Click the project ranking button, and the project ranking of the branch will appear, as shown in the figure below.

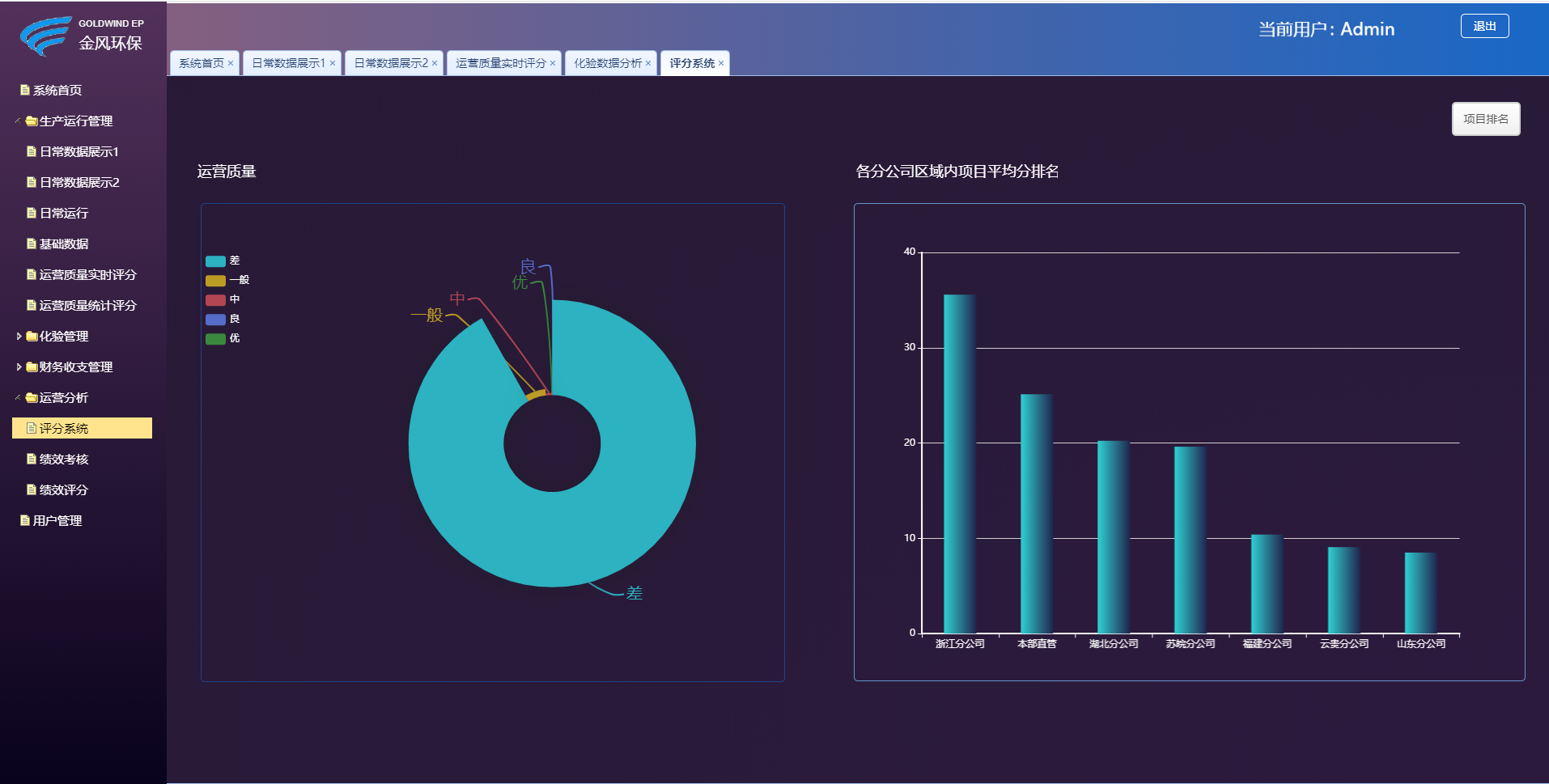

The line chart on the left side of the page represents the overall performance distribution table, and the bar chart on the right represents the average performance ranking of each branch.

Query: When you select the desired time, click the query button. The overall performance distribution table on this page and the average performance ranking of each branch will show the performance distribution and average performance ranking of the month.

b) Performance score

In order to complete the project company’s performance appraisal goals, embody the company’s humanized management model, and then pass the above objective evaluation scores, through reasonable and reasonable evaluation of the production conditions of each project branch company, and operational management capabilities for performance score management revision.

Authorized users can make customized performance score corrections for each project company based on the overall situation.

7. User management

Query: Select the branch you want to query in the first-level unit drop-down box, select a project company in the second-level unit drop-down box, and then click the query button to display the query screen.

New: Add is to add a new person to fill in. When you click the Add button, the following picture will appear. In the new user screen, you can set the account, password, phone number, first-level unit, second-level unit, and position of the new user. , Username and other information, and then click OK to create a new user.

On the displayed page, each user will have three operations: modify information, modify password, and delete.

Clicking to modify the data will display the following pop-up window, and in the pop-up window, you can modify the account, first-level unit, second-level unit, position, and telephone. After the modification is completed, click the confirm button to complete the data modification operation.

8. Mobile client

It is only for administrators, test report personnel, and operation report personnel to log in.

When you log in with an administrator account, the administrator login interface will appear on the app page. In the administrator login interface, you can only click on my function and view and modify the information inside.

Click on mine to display the screen as shown in the figure below; where the avatar is displayed, the currently logged-in branch and user will be displayed, and you can click on personal information, modify password, and about. When you click the logout button, you can logout to the login interface.

Clicking on personal information will pop up the personal information interface as shown in the figure below, and display your own information. Clicking Back will return the current page to my page, and clicking Save will save the current information.

Click the option to modify the password and the password modification interface will pop up. Click the back button to return to my page. After filling in the old password and the new password, click the OK button to modify the selected password.

Clicking on the About option will pop up the About interface, and clicking the Back button will return to my page. The About interface displays the QR code of the management and operation platform of Goldwind Environmental Protection Co., Ltd. which can be scanned through WeChat.

The QR code of the management and operation platform of Feng Environmental Protection Co., Ltd. can be scanned through WeChat.

When the laboratory technician logs in, the laboratory personnel filling interface will pop up, and fill in the laboratory data filling report on the page. After filling in, click the submit button to submit the filled report. Click my option on the page, and the same display interface as the above administrator login will appear, which is not explained here. When the page is on my page, click to fill in and return to the fill in page.

When the operator logs in, the operator fill-in interface will pop up to fill in the operating data fill-in report on the page. After filling in, click the submit button to submit the filled report. Click my option on the page, and the same display interface as the above administrator login will appear, which is not explained here. When the page is on my page, click to fill in and return to the fill in page.
